K112BII/K112BASII
1x12"Sub-woofer/1x12"Active Sub-woofer
DESCRIPTION

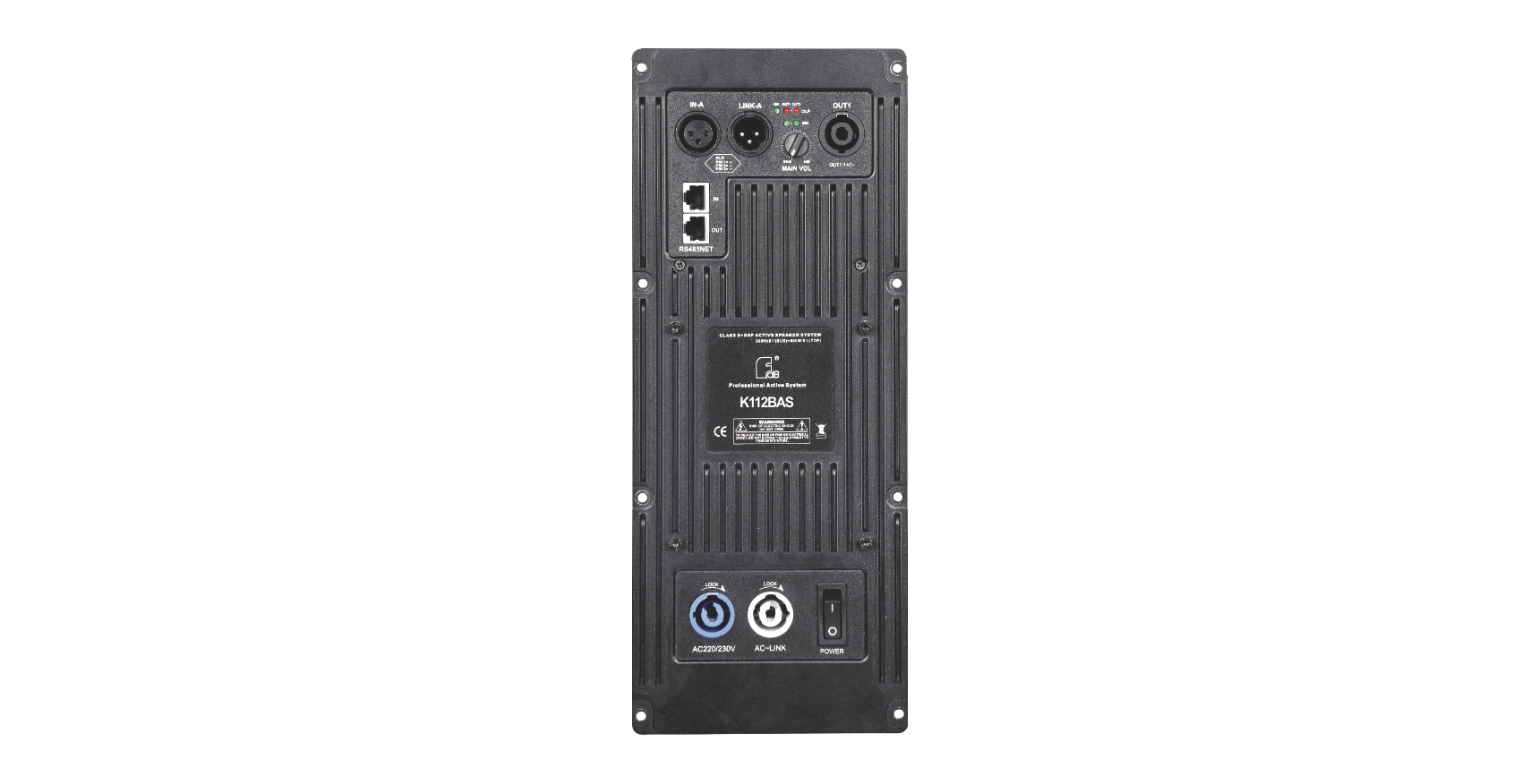

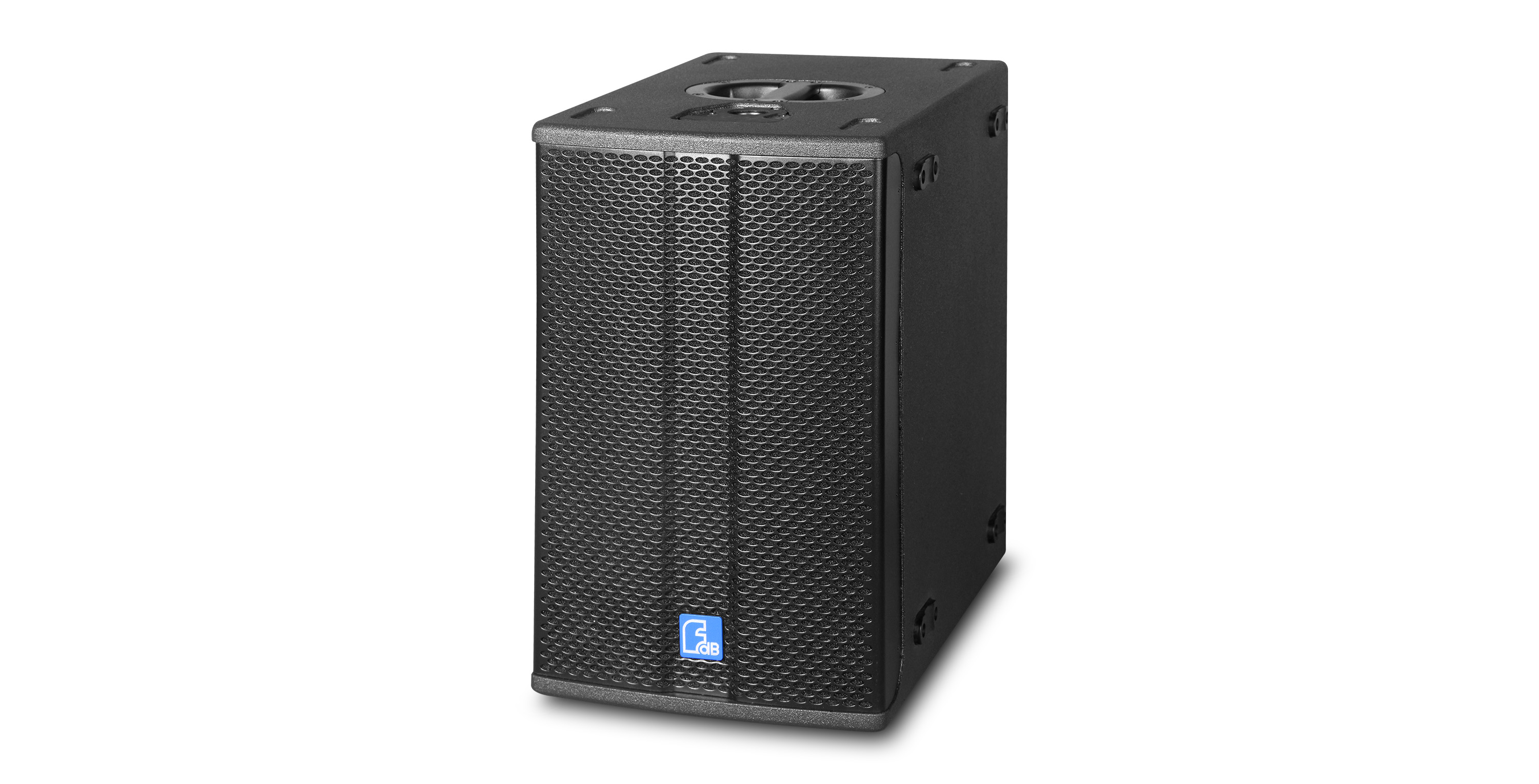

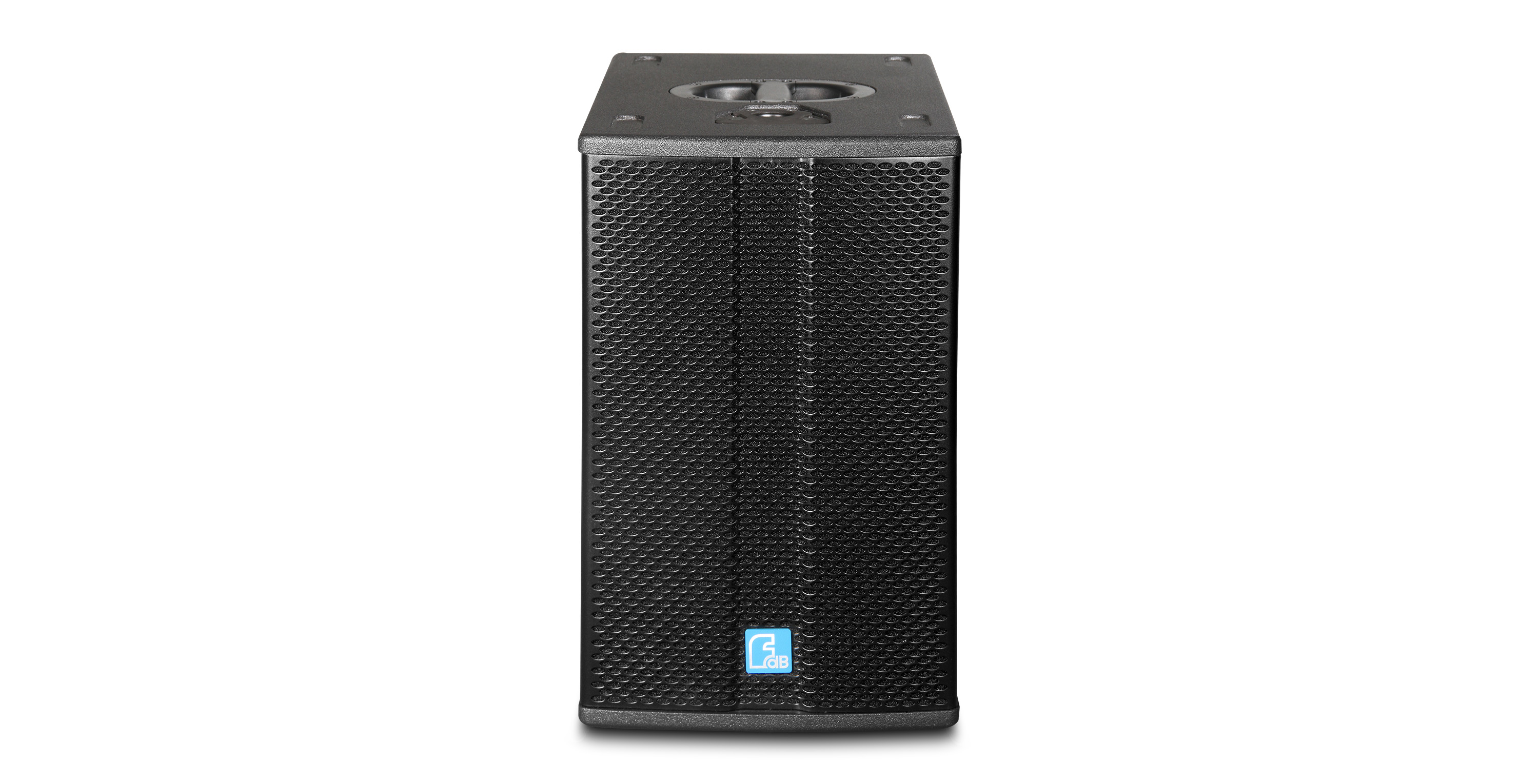

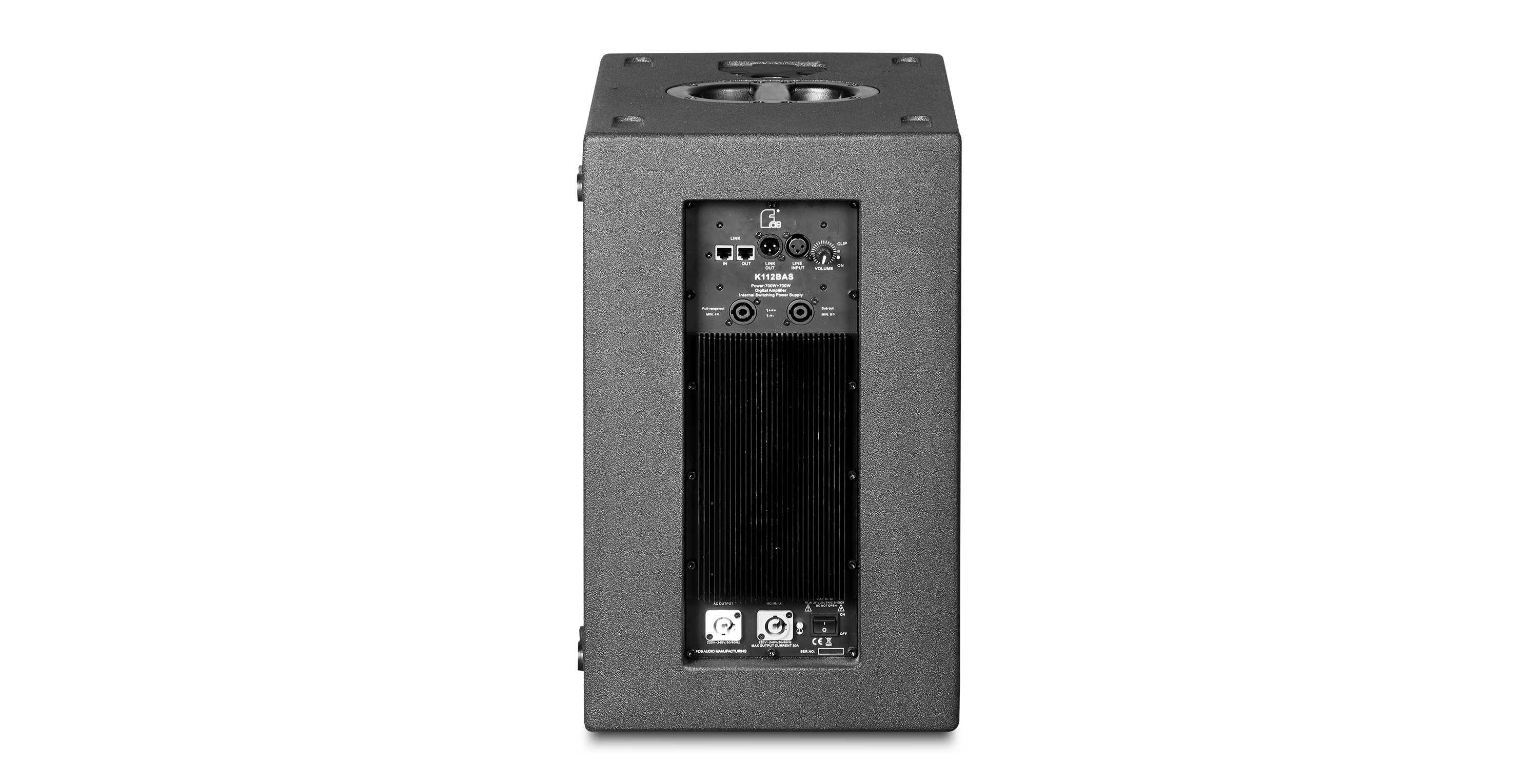

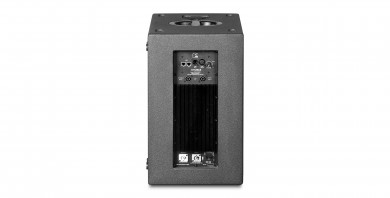

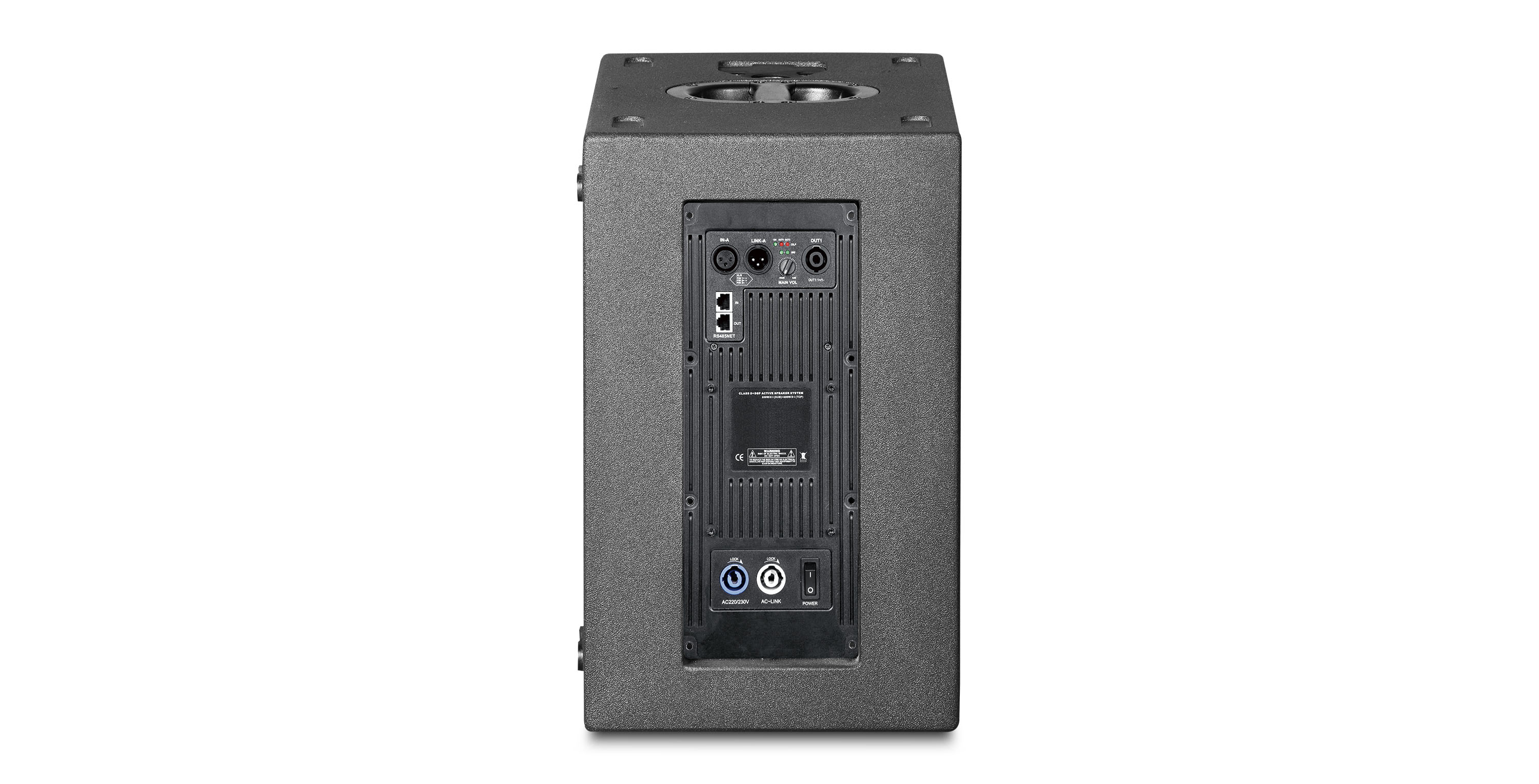

K112BⅡ is a single 12" subwoofer, using 3" voice coil woofer, made of high quality plywood with polyurea waterproof paint. K112BASⅡis equipped with digital amplifier module with DSP to be an active system with full range and sub outputs based on K112BⅡ.
FEATURES
● High quality plywood with wear-resistant and waterproof polyurea paint
● Bass reflex design
● Hidden and external connections
● High temperature 3"(75mm) voice coil

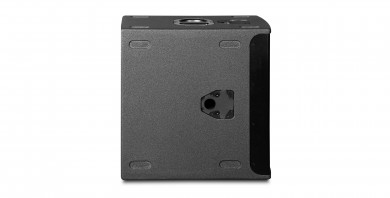

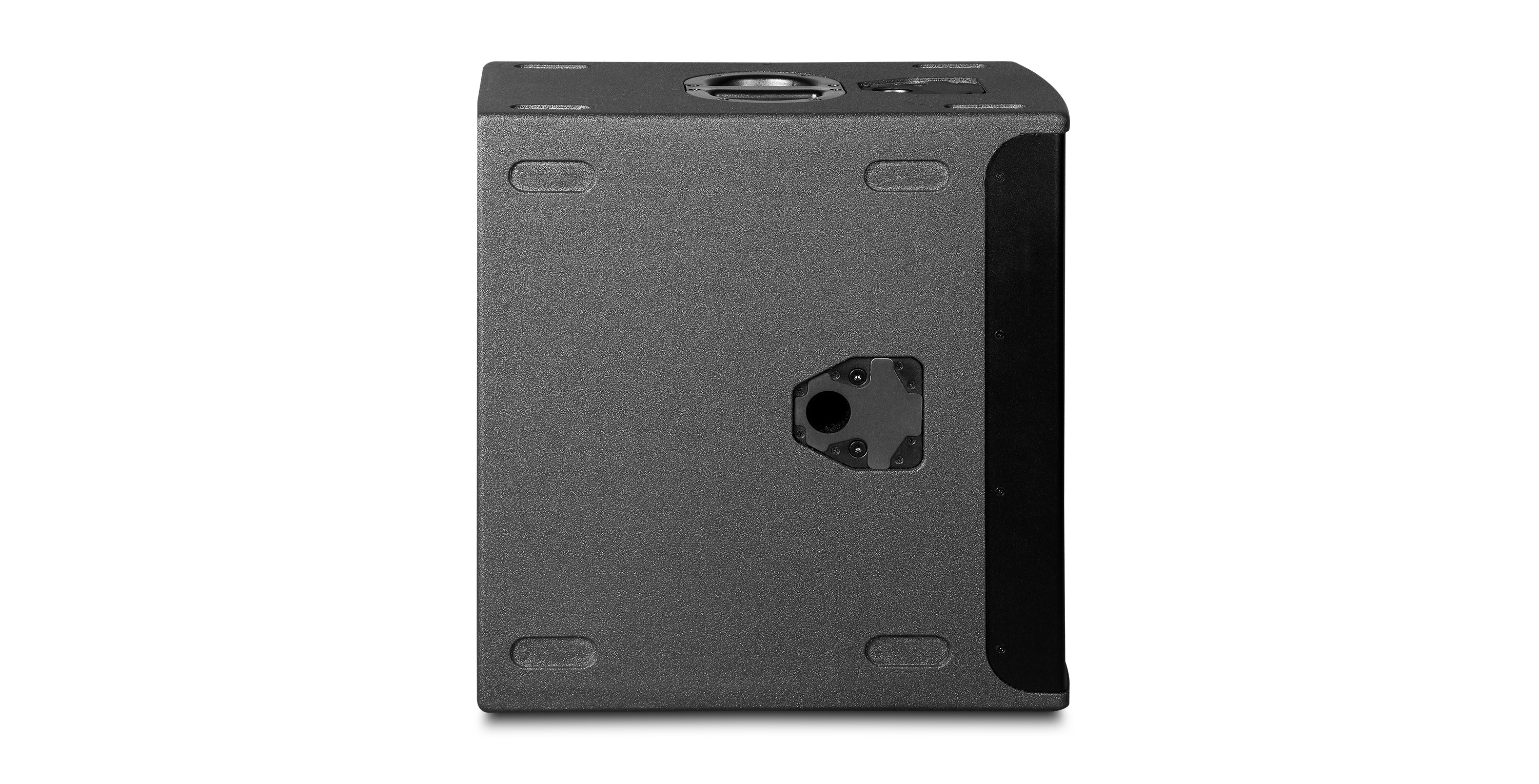

● Top hat fitting for pole mounting to K series
● To match small size K series full range speakers
● Bass reflex design
● Hidden and external connections
● High temperature 3"(75mm) voice coil
● Top hat fitting for pole mounting to K series
● To match small size K series full range speakers
SPECIFICATIONS
| MODEL | K112BII | K112BASII |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1X12"(300mm) | 1X12"(300mm) |
| 3"voice coil LF | 3"voice coil LF | |
| RATED POWER | 300W(RMS),1200W peak | 300W +600W(RMS) |
| SENSITIVITY | 96dB 1watt/1meter | -- |
| MAXIMUM SPL | 121dB continuous,127dB peak | 121dB continuous,127dB peak |
| IMPEDANCE | 8 ohms nominal | – |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 605x415x632mm | 605x415x632mm |
| NET WEIGHT | 22 kg/pc | 24 kg/pc |
| GROSS WEIGHT | 26 kg/pc | 28 kg/pc |
