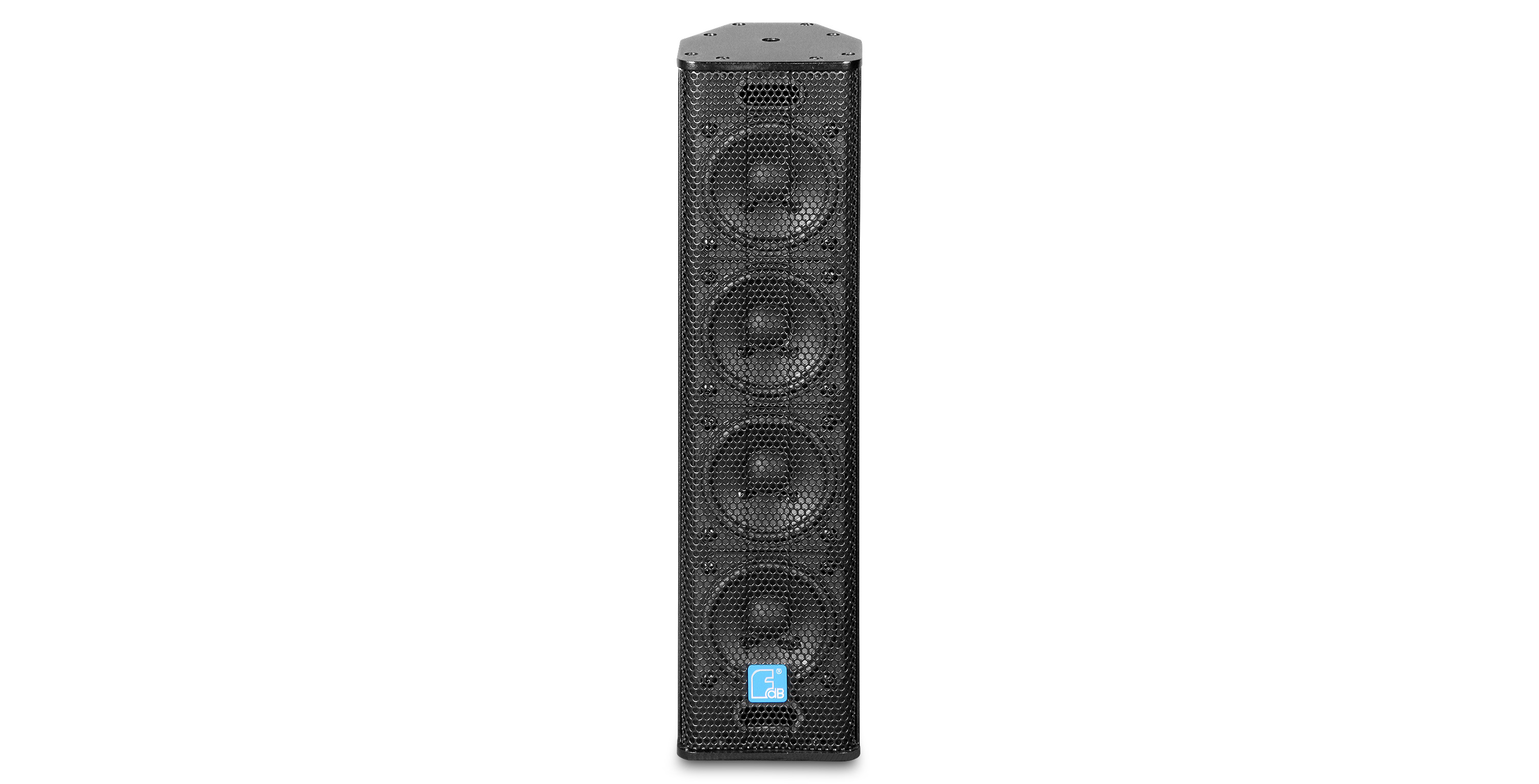

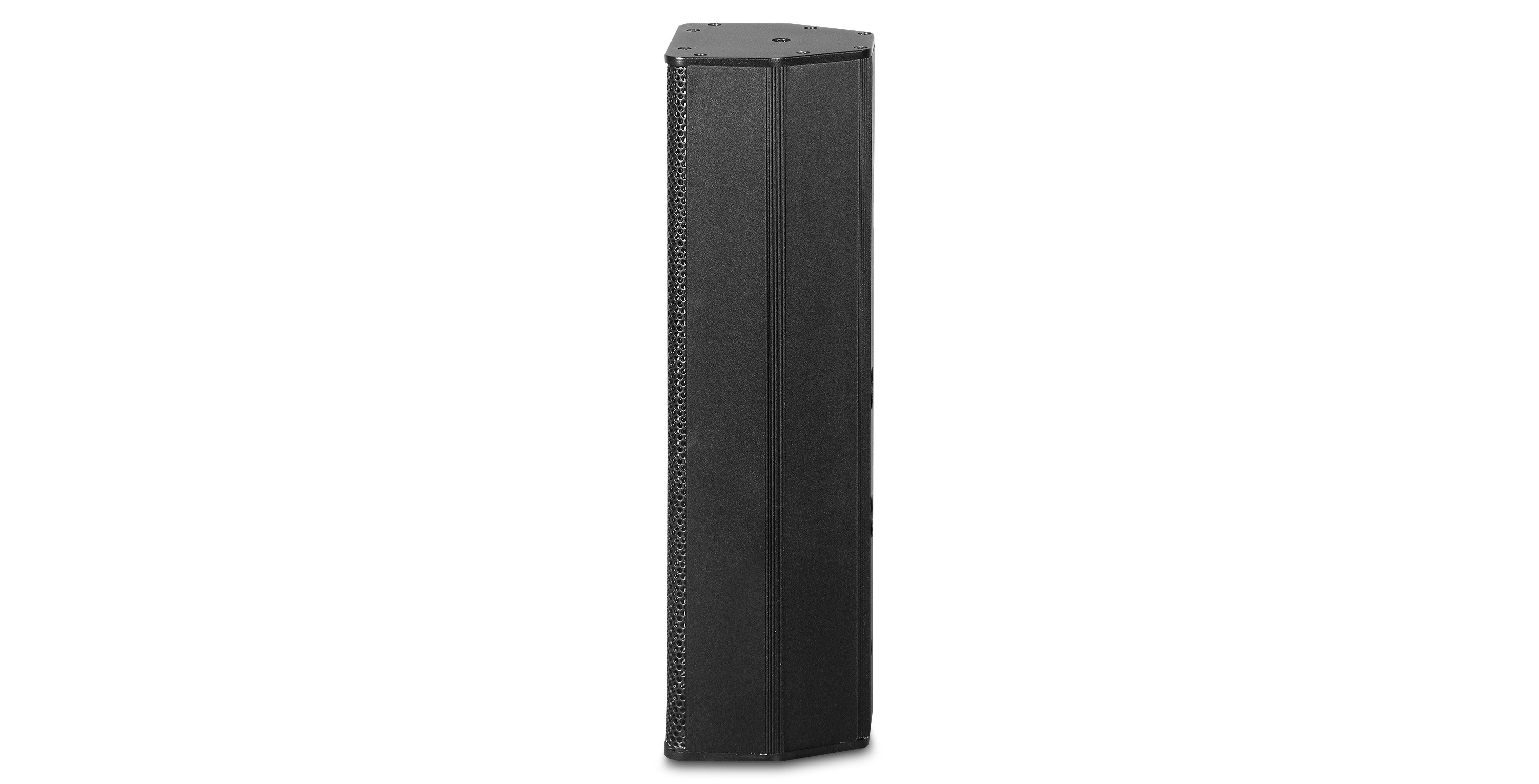

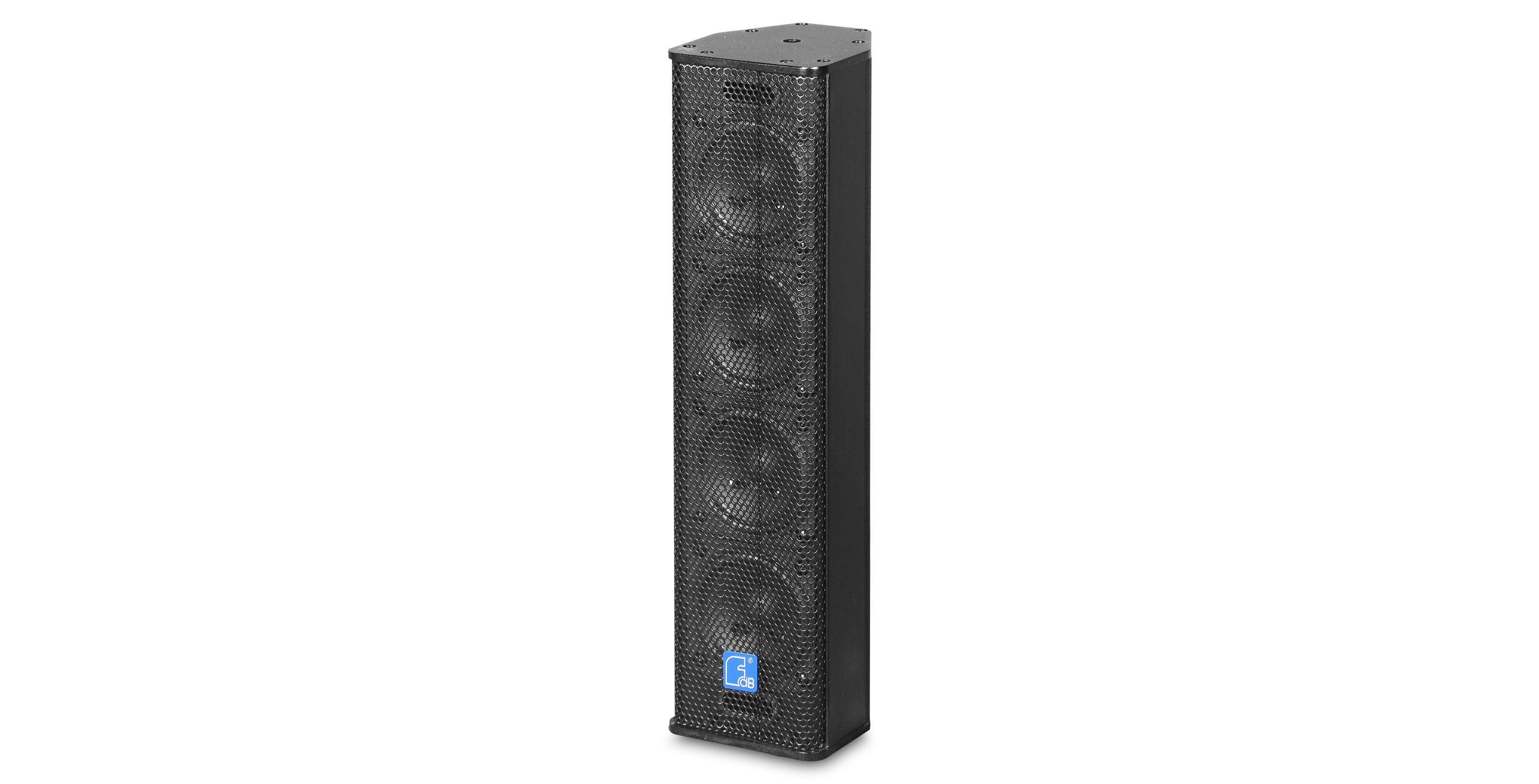

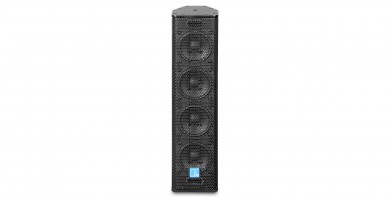

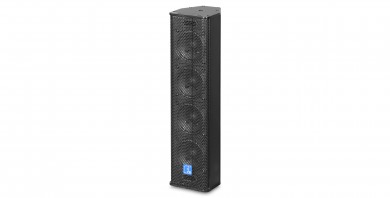

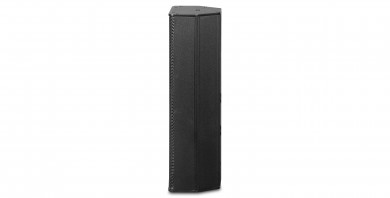

K403Ⅱ
4x3"Mid/High Unit SYstem
DESCRIPTION
The K403Ⅱ/803Ⅱ/163Ⅱ is a series product, using the high quality 3" neodymium speaker units skillfully assembled into column speakers to meet the demands of different small and medium-scaled places,and the box body is made of aluminium alloy. The IP46 international standard can be met based on special request.
FEATURES
●Light weight aluminium alloy enclosure
●Multi combinations and installation ways
●Hidden and external connections
●Used for moving performance, church and multi-purpose hall
●Multi combinations and installation ways
●Hidden and external connections
●Used for moving performance, church and multi-purpose hall
SPECIFICATIONS
| MODEL | K403II |
| FREQUENCY RESPONSE(-3dB) | 120Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
115Hz-20KHz |
| DRIVERS | 4×3"(83mm)/0.8"voice coil Mid/High Unit |
| RATED POWER | 100W RMS/400W peak |
| SENSITIVITY | 94dB 1watt/1meter |
| MAXIMUM SPL | 114dB continuous/120dB peak |
| IMPEDANCE | 16 ohms nominal |
| DISPERSION(-6dB) | 70° horizontal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 285x210x465mm(1pair/carton) |
| NET WEIGHT | 2.7 kg/pc |
| GROSS WEIGHT | 7 kg/pair |
CONFIGURATION
DOWNLOAD
K403Ⅱ K803Ⅱ K163Ⅱ.pdf
