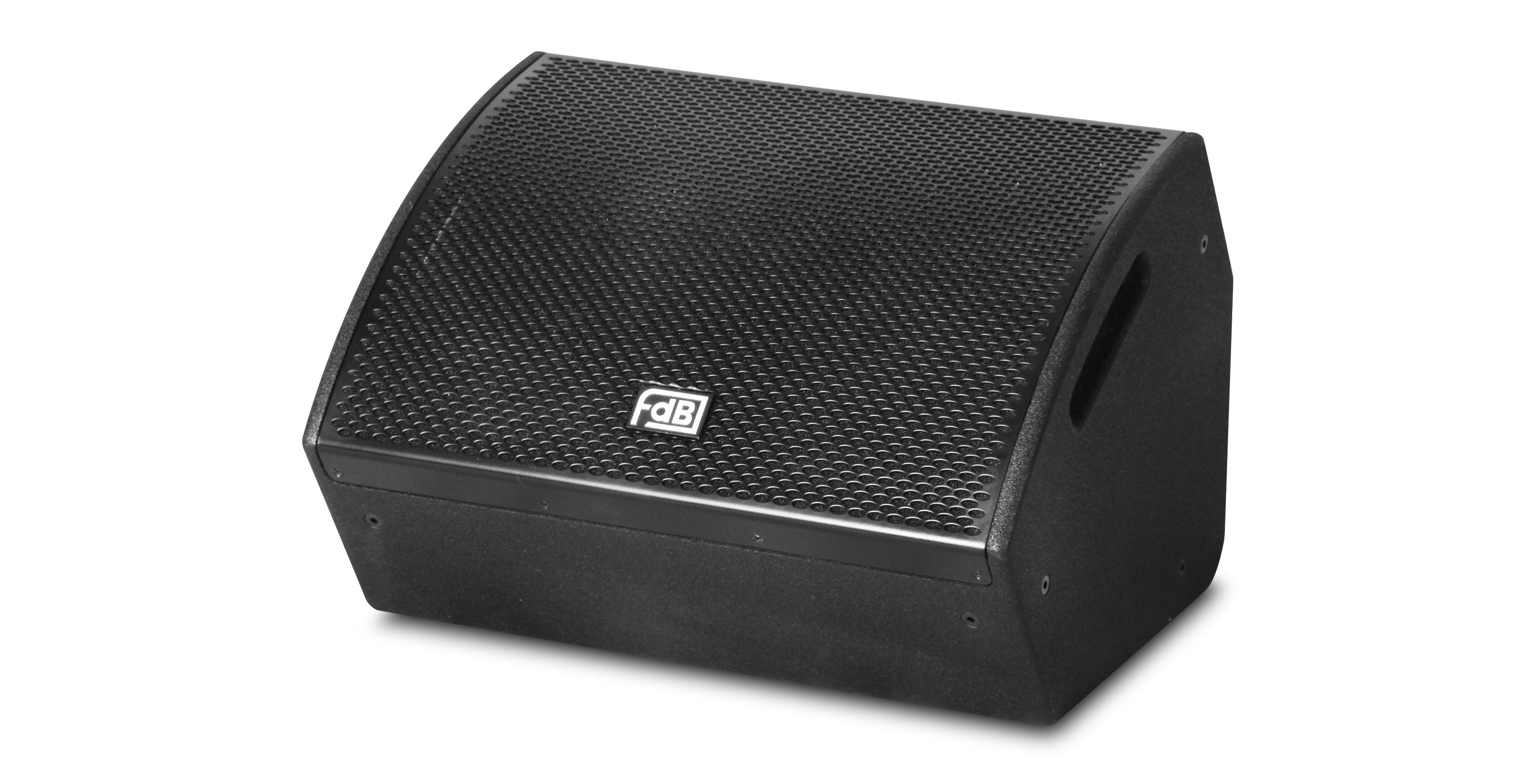

MR12N
12" 2-way loudspeaker system
DESCRIPTION
The MR12N is a high precision and high power stage monitor. It offers a“studio monitoring”type of response, exceptional dynamic capability, very low distortion, and has mechanical system for angle adjustment when floor mounted.
FEATURES
FEATURES
●High quality plywood with polyurea waterproof paint
●Neodymium HF driver
●Compact two-way passive system
●High quality plywood with polyurea waterproof paint
●Neodymium HF driver
●Compact two-way passive system
●Patent 90°×40° hron
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
50Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY | 97dB 1watt/1 metre |
| MAXIMUM SPL | 122dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 495mm×465mm×643mm |
| NET WEIGHT | 17 kg/pc |
| GROSS WEIGHT | 20 kg/pc |

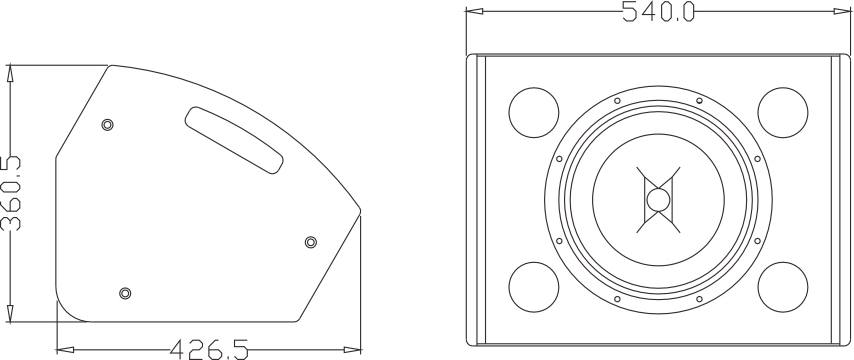

CONFIGURATION
DOWNLOAD
