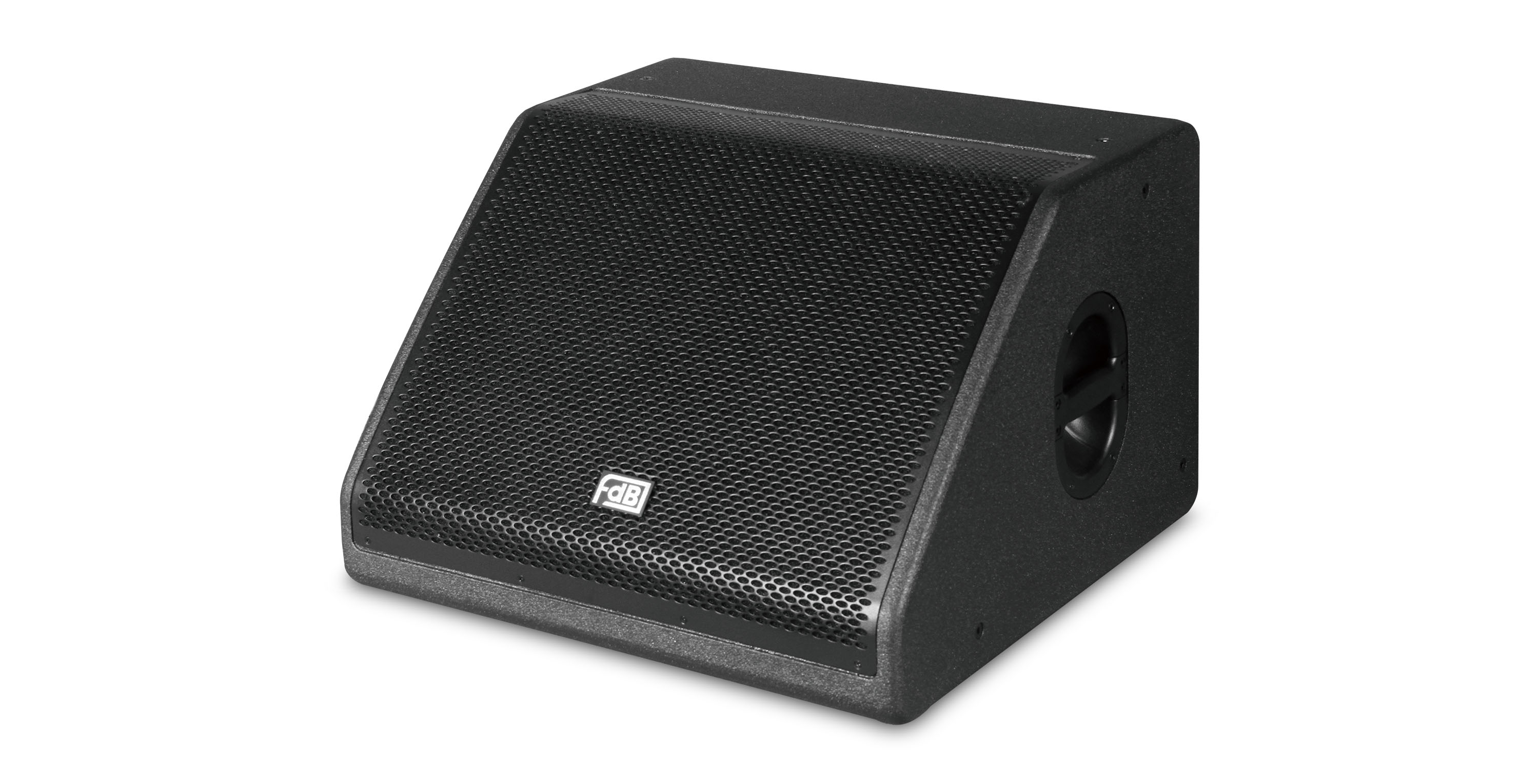

MR15C/MR15CA
15" 2-way loudspeaker system
DESCRIPTION
The MR15C is a high precision and high power stage monitor. It offers a“studio monitoring”type of response, exceptional dynamic capability, very low distortion, and has mechanical system for angle adjustment when floor mounted. Fitted with one 15" woofer and one 1" exit neodymium compression driver coupled to a patent 90°×40° horn.
FEATURES
●High quality plywood with polyurea waterproof paint
●Neodymium HF driver
●Compact two-way passive system
●Neodymium HF driver
●Compact two-way passive system
●Patent 90°×40° hron
SPECIFICATIONS
| MODEL | MR15C | MR15CA |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz | 50Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 45Hz-20kHz | 45Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF | 1×15"(300mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | 1×1"(25mm) / 1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak | 600W/8Ω |
| SENSITIVITY | 98dB 1watt/1 metre | -- |
| MAXIMUM SPL | 124dB continuous,130dB peak | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | 90°× 40° | 90° × 40° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE：Balanced Differential line |
| PACKAGE SIZE | 687mm×510mm×715mm | 687mm×510mm×715mm |
| NET WEIGHT | 29 kg/pc | 31 kg/pc |
| GROSS WEIGHT | 33 kg/pc | 35 kg/pc |
CONFIGURATION
