MR12C/MR12CA
12" 2-way loudspeaker system
DESCRIPTION

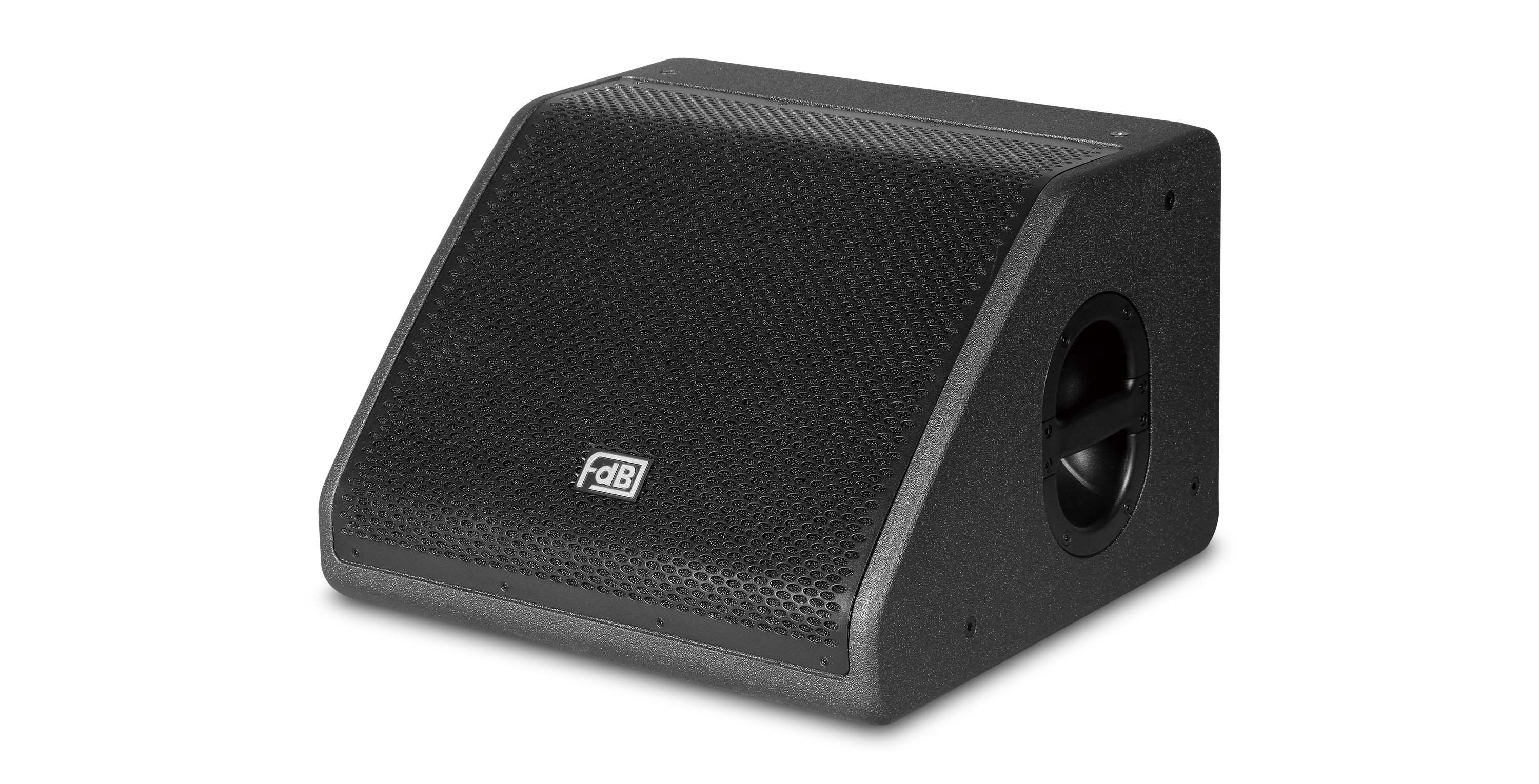

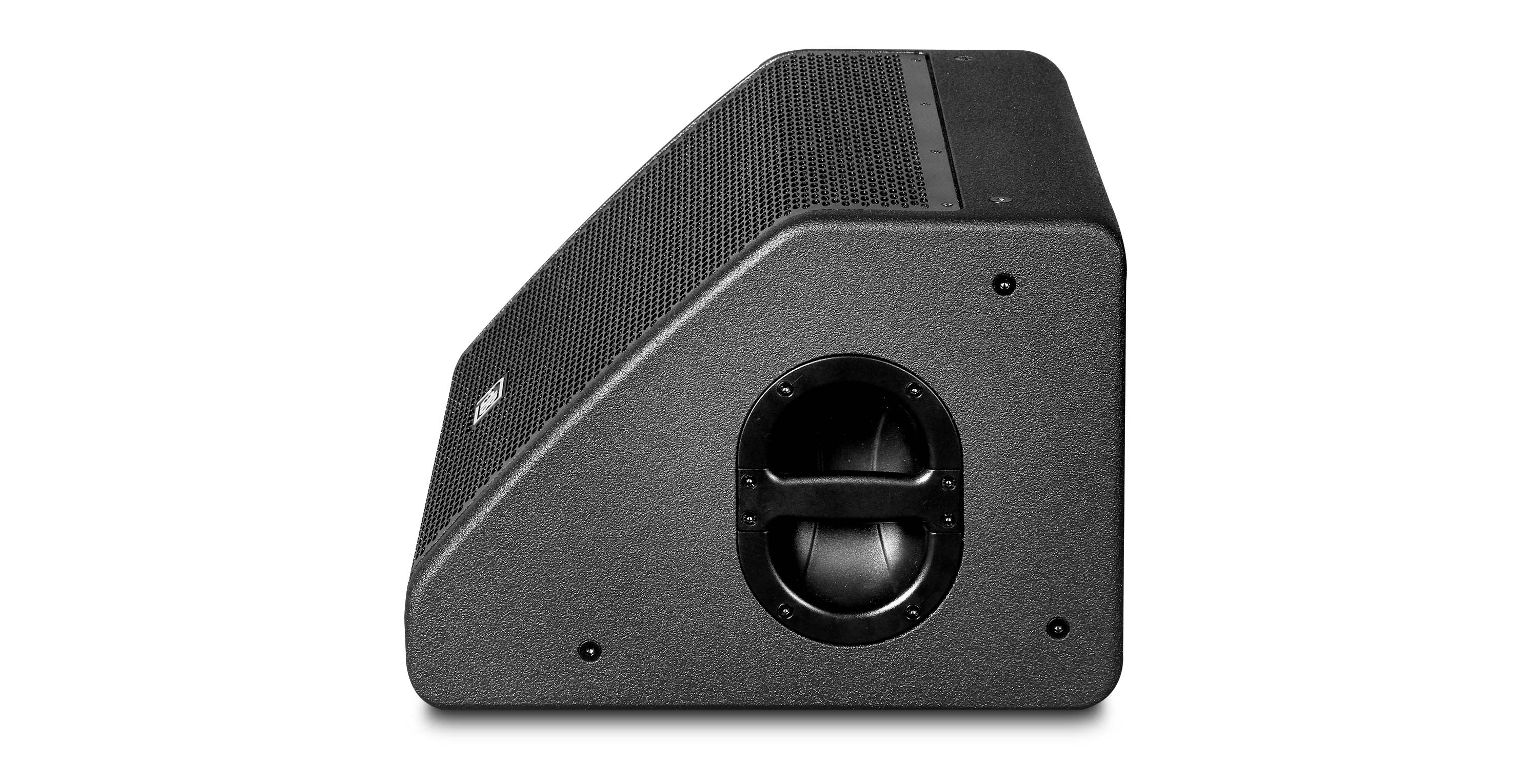

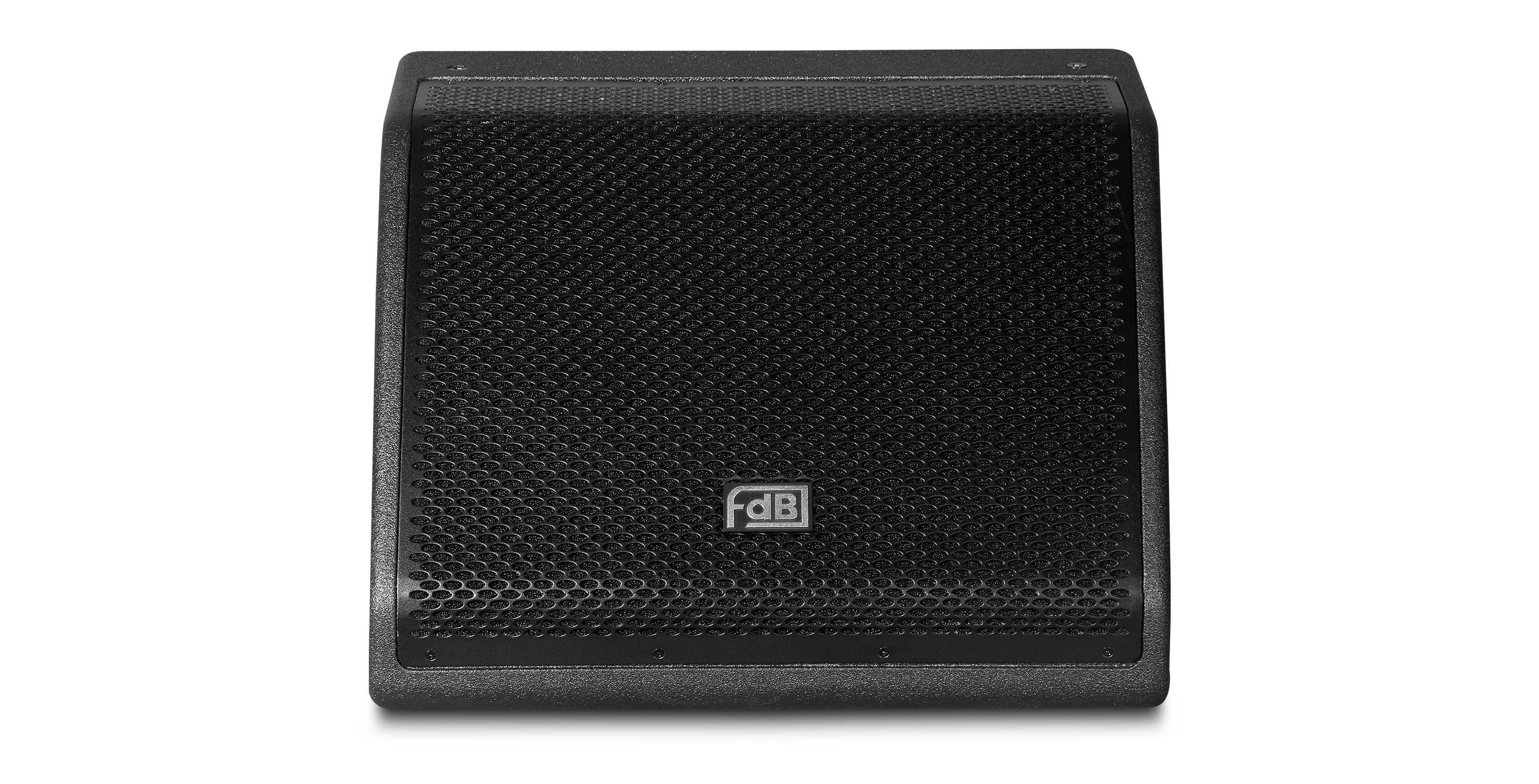

The MR12C is a high precision and high power stage monitor, made of high quality plywood with polyurea paint. It offers a " studio monitoring" type of response, exceptional dynamic capability and very low distortion. Fitted with one 12" woofer and one 1" exit neodymium compression driver coupled to a patent 90° x 40° horn. MR12CA is equipped with FA1.6 digital amplifier module based on MR12C to be an active monitor.
FEATURES
●High quality plywood with polyurea waterproof paint
●Neodymium HF driver
●Compact two-way passive system
●Patent 90°×40° hron
●Neodymium HF driver
●Compact two-way passive system
●Patent 90°×40° hron
SPECIFICATIONS
| MODEL | MR12C | MR12CA |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz | 55Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 50Hz-20kHz | 50Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF | 1×12"(300mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | 1×1"(25mm) / 1.7"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak | 600W/8Ω |
| SENSITIVITY | 97dB 1watt/1 metre | -- |
| MAXIMUM SPL | 122dB continuous,128dB peak | 122dB continuous,128dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | 90°×40° | 90° × 40° |
| CROSSOVER FREQUENCIES | 2.3kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE：Balanced Differential line |
| PACKAGE SIZE | 547mm×420mm×595mm | 547mm×420mm×595mm |
| NET WEIGHT | 21 kg/pc | 23 kg/pc |
| GROSS WEIGHT | 24 kg/pc | 26 kg/pc |

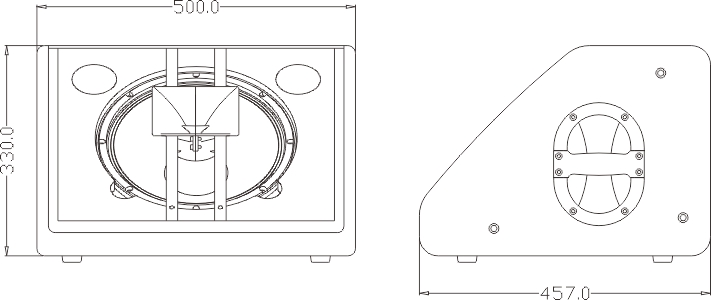

CONFIGURATION
