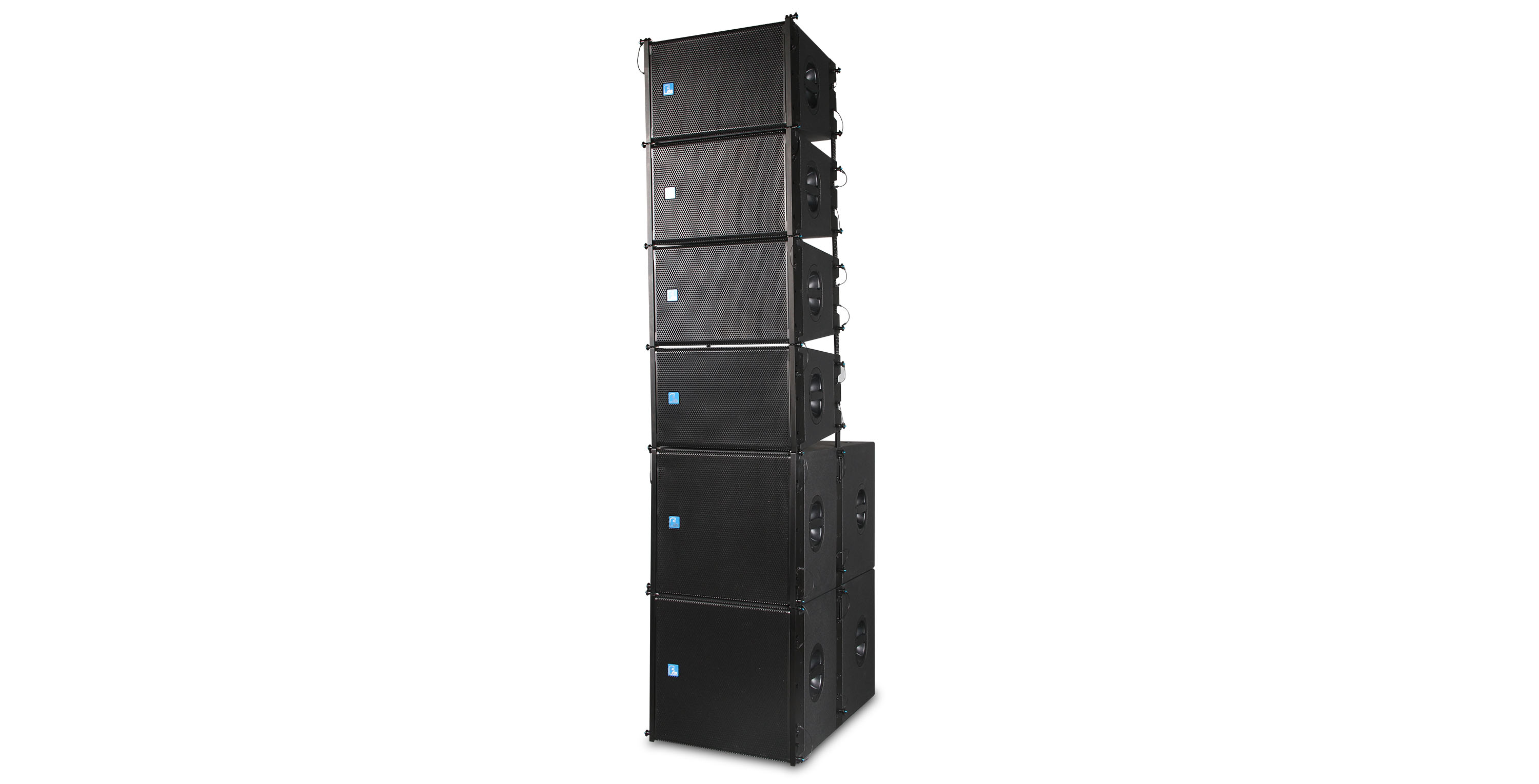

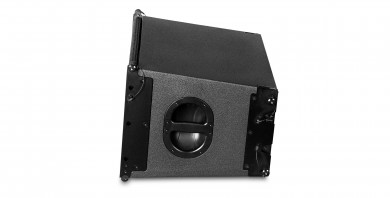

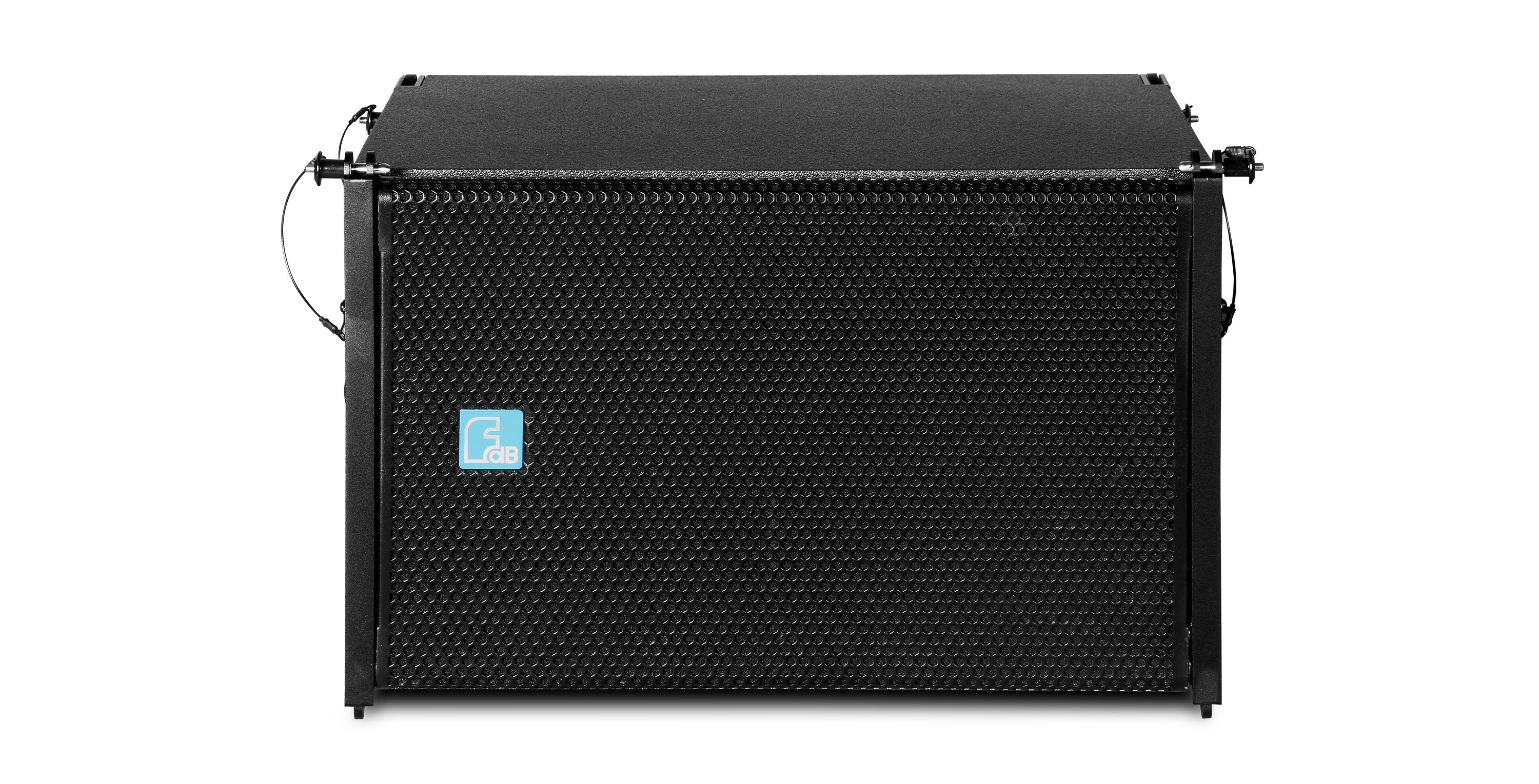

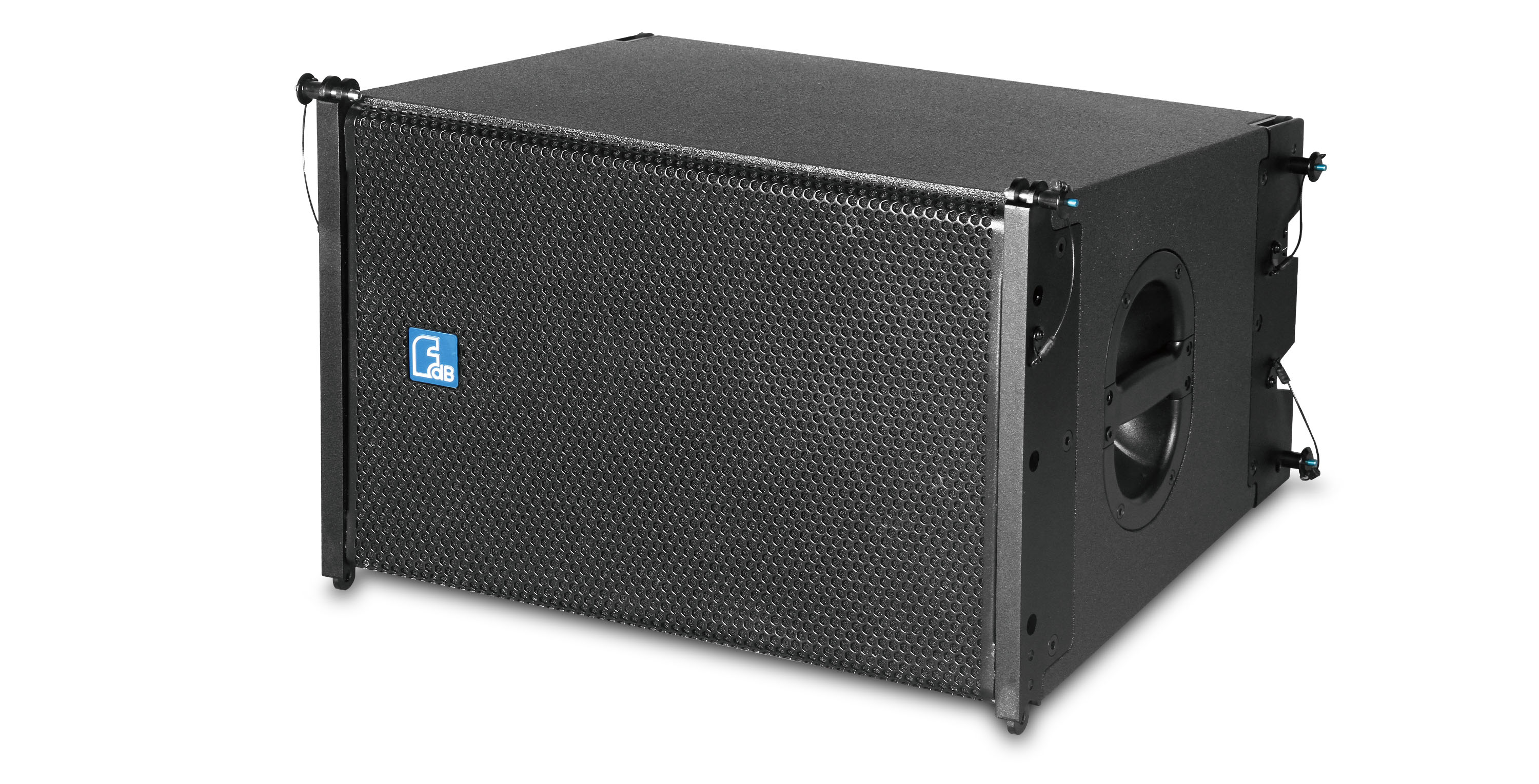

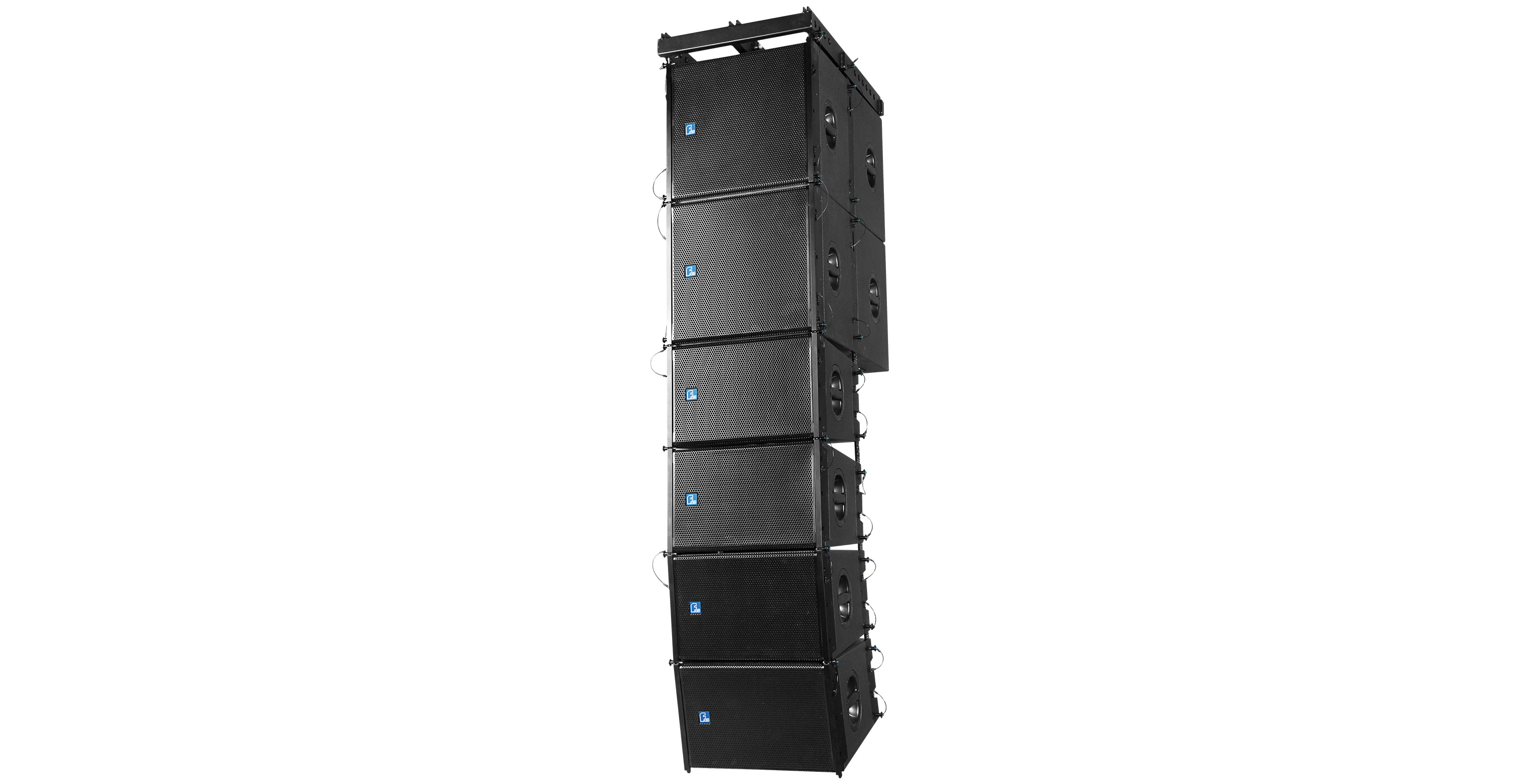

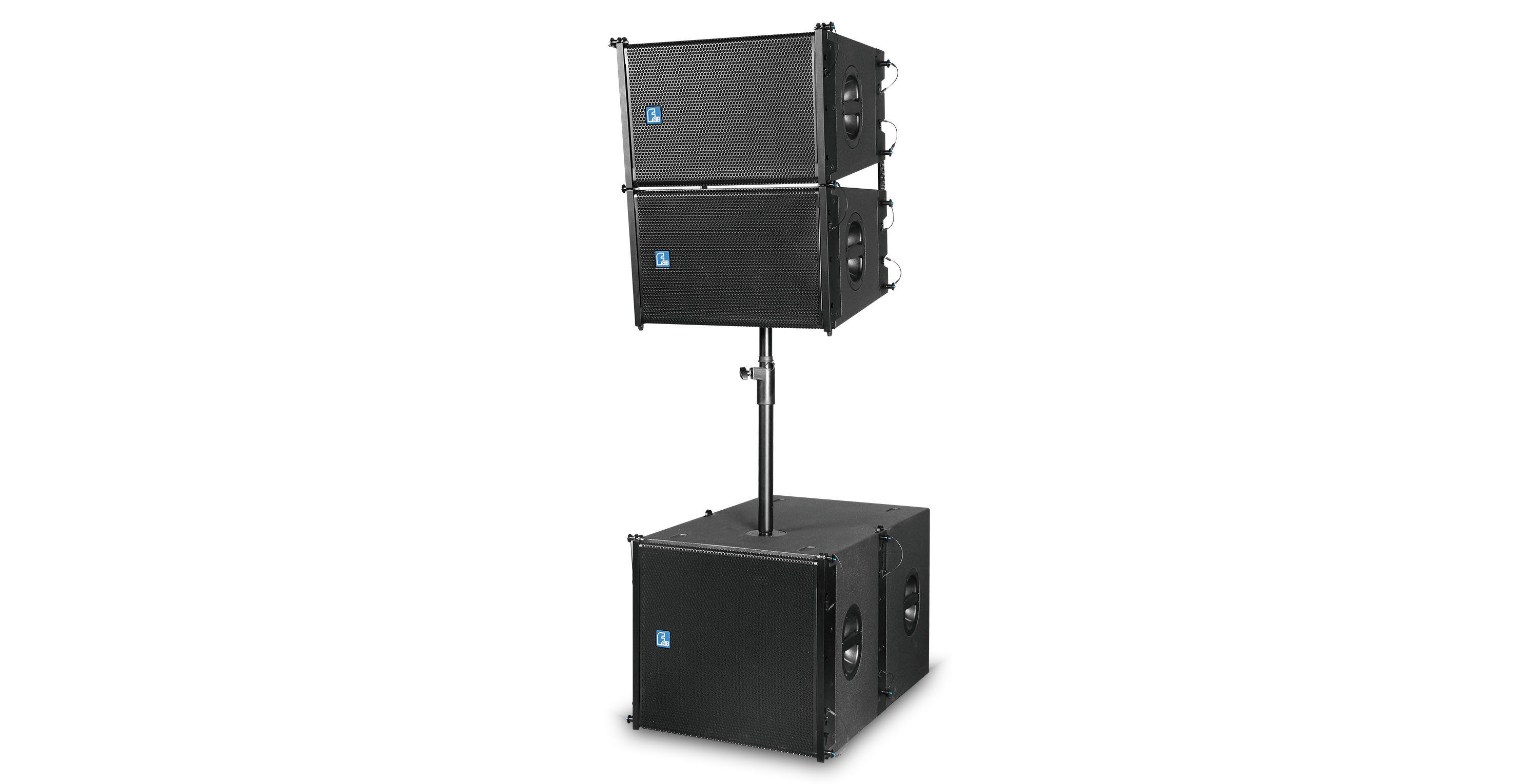

MLA112
1x12" 2-way line array system
DESCRIPTION
The MLA112 is a small and medium scale line array loudspeaker for long throw distance scale sound reinforcement, fitted with one 12" neodymium LF driver and two 1" neodymium HF driver coupled to a patent line array horn,made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy.
FEATURES
●High quality plywood with polyurea waterproof paint
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging tripod and stacking
●High quality neodymium components
●Patent line array horn
●Small cabinet with light weight, but with high SPL
●Passive or Bi-amp operation
●Convenient for hanging tripod and stacking
●Good used for moving performance, small scale theater, stadium and odeums.
SPECIFICATIONS
| MODEL | MLA112 |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
45Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 2×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 98dB 1watt/1meter |
| MAXIMUM SPL | 122 dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal covrage：100° |
| Vertical coverage：Varies,depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 2kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 522mm×487mm×635mm |
| NET WEIGHT | 21 kg/pc |
| GROSS WEIGHT | 25 kg/pc |
