MLA215B/MLA215BA
2x15" Sub-woofer /2x15" Active Sub-woofer
DESCRIPTION

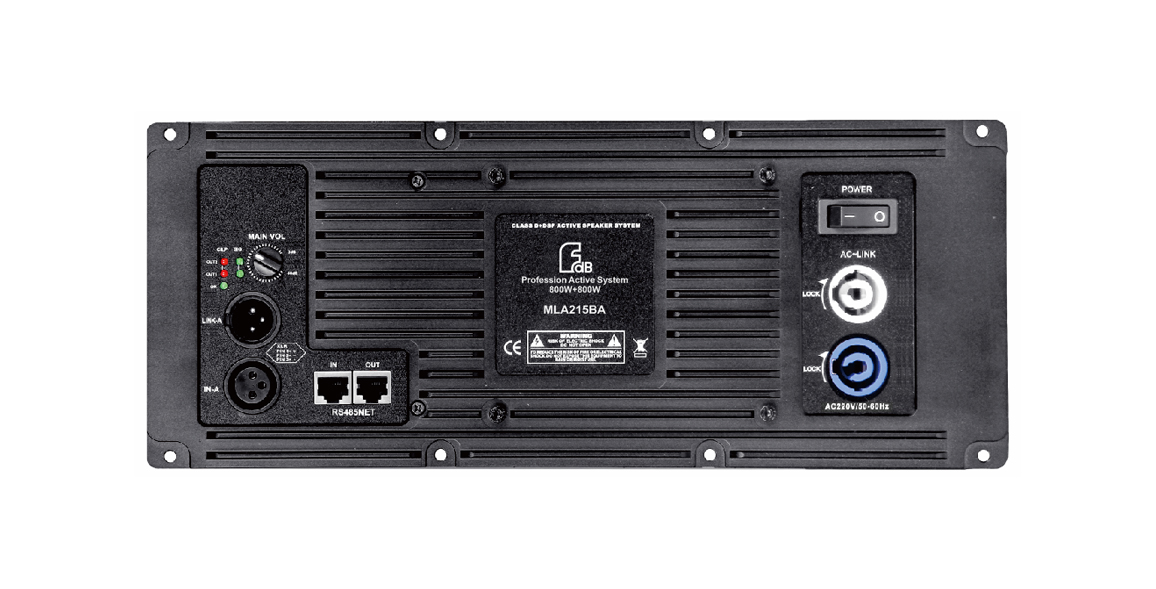

The MLA215B is a dual 15" low frequency enclosure designed for sub-bass reinforcement to MLA210, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy. The MLA215BA is equipped with BA2.1010 digital amplifier module based on MLA215B to be an active subwoofer.
FEATURES
●High quality plywood with polyurea waterproof paint
●Bass reflex and horn-loaded design
●High SPL
●Bass reflex and horn-loaded design
●High SPL
●Good used for moving performance, small scale theater and band
SPECIFICATIONS
| MODEL | MLA215B | MLA215BA |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz |
| DRIVERS | 2x15"(385mm)/4"voice coil LF | 2x15"(385mm)/4"voice coil LF |
| RATED POWER | 1200W(RMS),4800W peak | 1200W/4Ω+1200W/4Ω |
| SENSITIVITY | 101dB 1watt/1meter | -- |
| MAXIMUM SPL | 132dB continuous,138dB peak | 132dB continuous,138dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 860mmx770mmx550mm | 860mmx7700mmx550mm |
| NET WEIGHT | 56 kg/pc | 58 kg/pc |
| GROSS WEIGHT | 62 kg/pc | 64 kg/pc |
