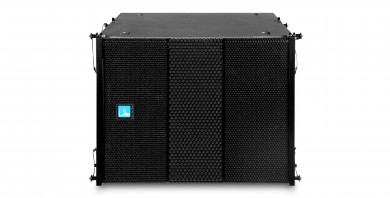

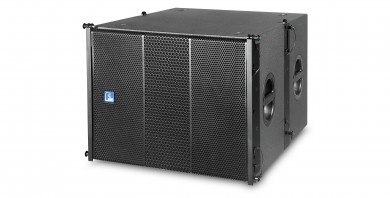

MLA118W/MLA118WASII    1x18" Sub-woofer /1x18" Active Sub-woofer

DESCRIPTION

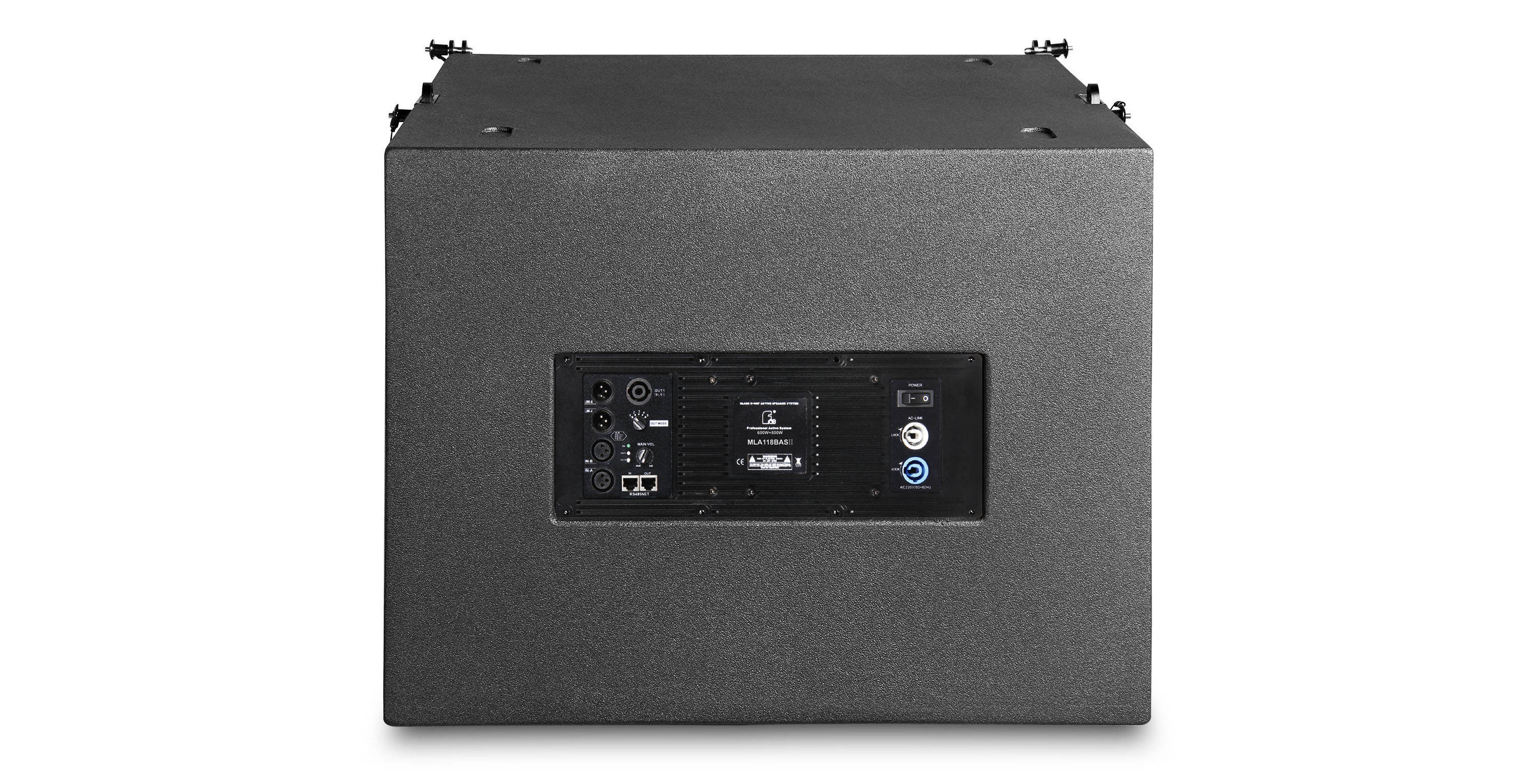

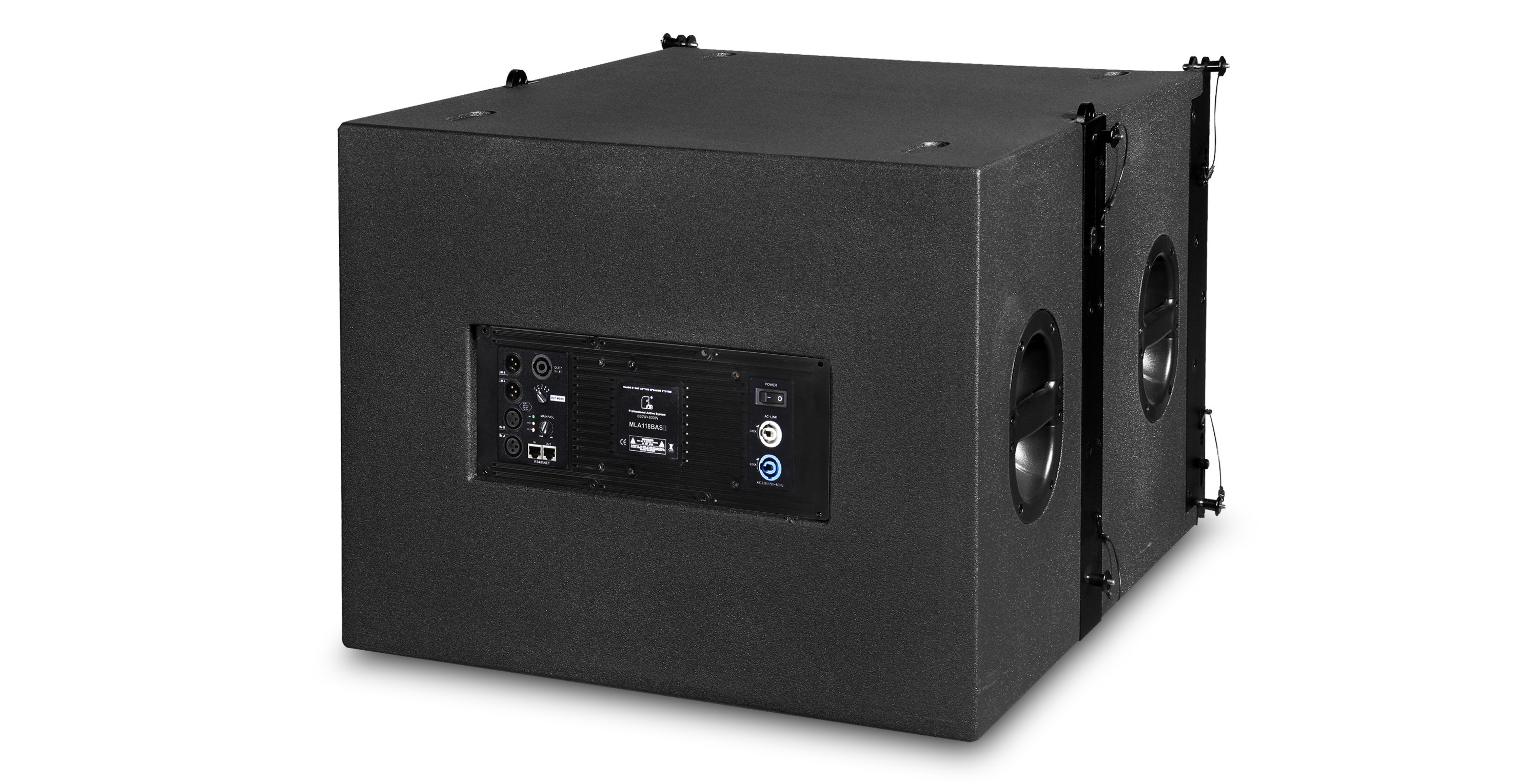

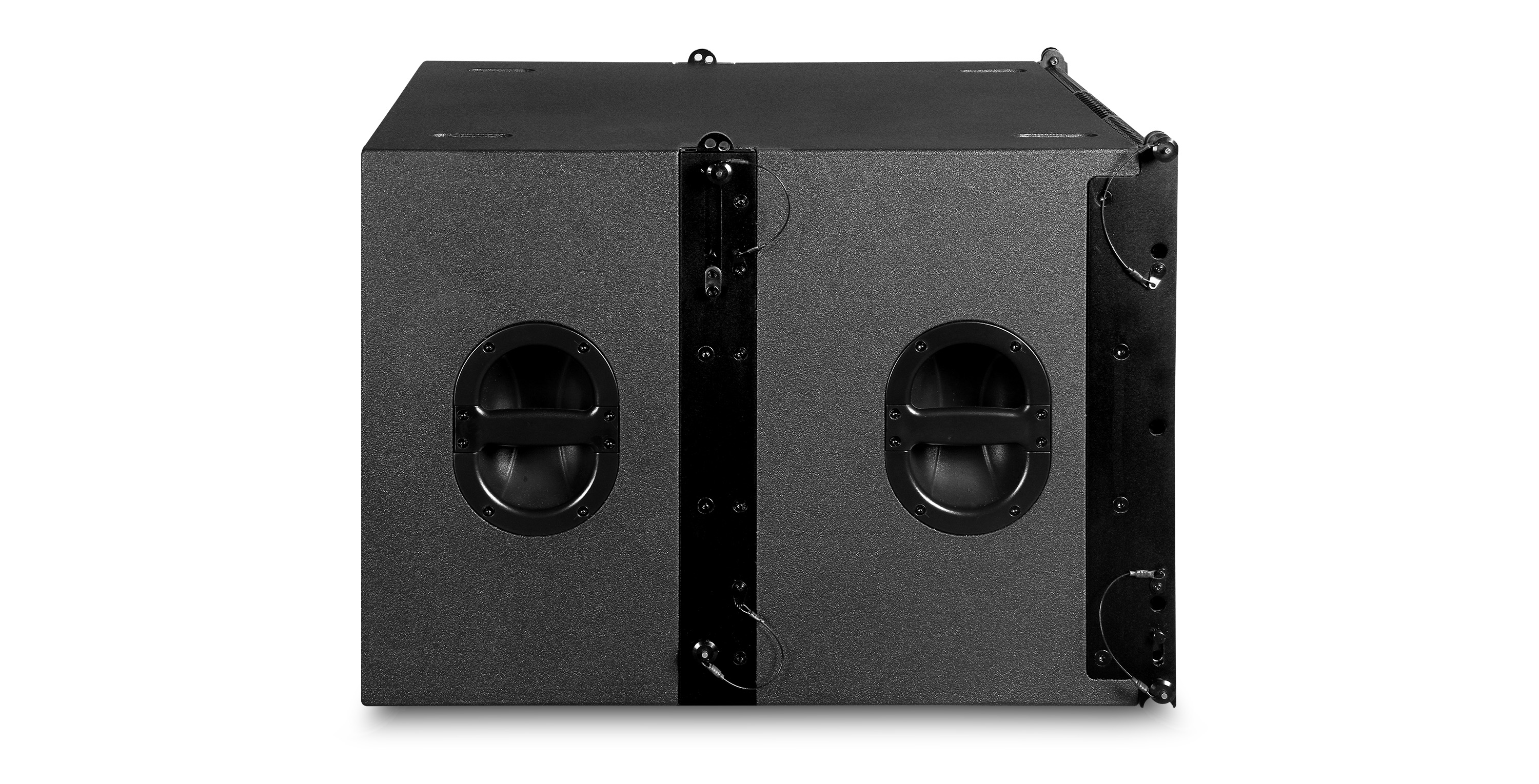

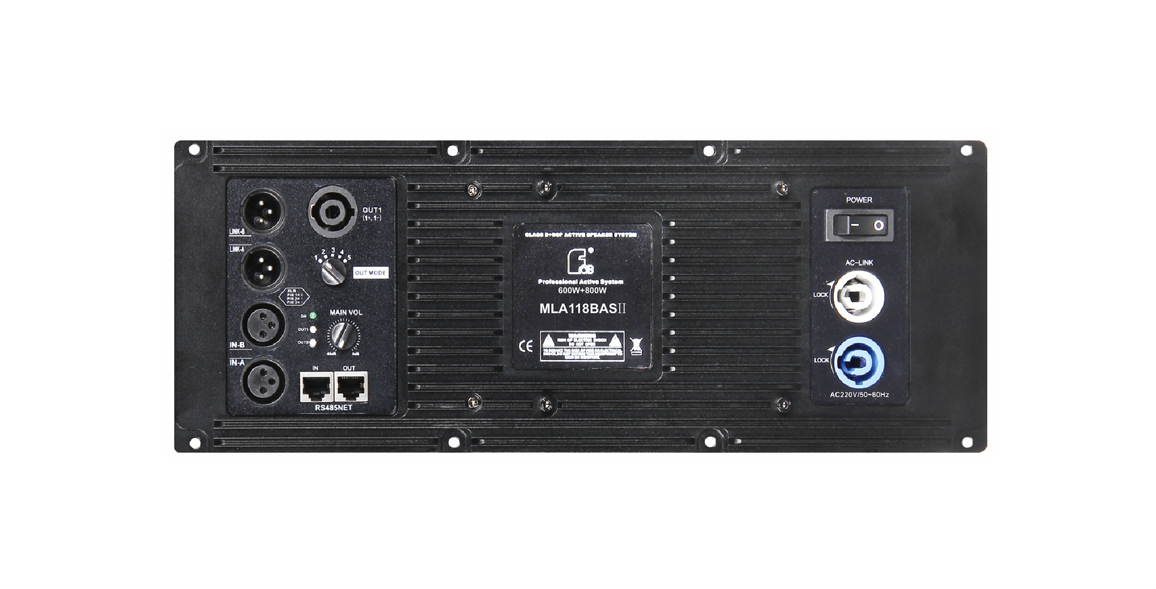

The MLA118W is a single 18" low frequency enclosure designed for sub-bass reinforcement to MLA112, made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminum alloy. The MLA118WASII is equipped with SA2.68II digital amplifier module based on MLA118W to be an active system to push 2pcs MLA112.



FEATURES

FEATURES
● High quality plywood with polyurea waterproof paint
● Direct radiating design

● High temperature 4" (100mm) voice coil



SPECIFICATIONS

MODEL MLA118W MLA118WASII
FREQUENCY RESPONSE(-3dB) 35Hz-300Hz 35Hz-300Hz and 50Hz-20kHz
DRIVERS 1×18"(460mm)/4"voice coil LF                                1×18"(460mm)/4"voice coil LF
RATED POWER 600W RMS,2400W peak 900W/4Ω+1200W/4Ω
SENSITIVITY 99dB  1watt/1meter --
MAXIMUM SPL 127dB continuous,133dB peak 127dB continuous,133dB peak
IMPEDANCE 8 ohms nominal --
INPUT CONNECTORS 2×Speakon NL4 INPUT TYPE:Balanced Differential line

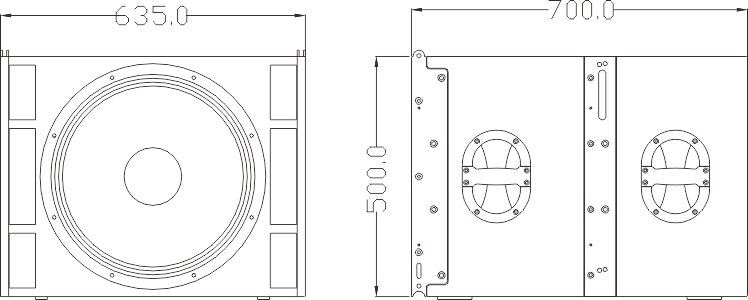

PACKAGE SIZE 965mm×635mm×595mm 965mm×635mm×595mm
NET WEIGHT 43 kg/pc 45 kg/pc
GROSS WEIGHT 48 kg/pc 50 kg/pc
