MLA118B/ML118BAS
1x18" Sub-woofer/1x18" Active Sub-woofer
DESCRIPTION

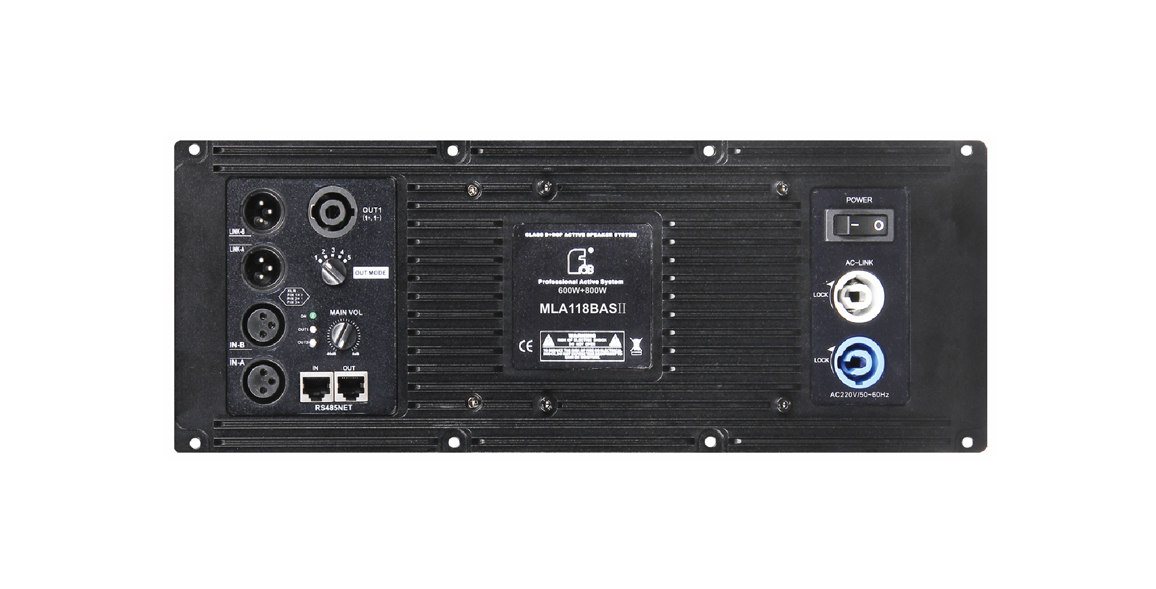

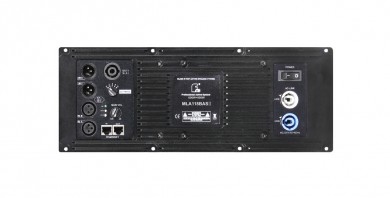

The MLA118B is a single 18" low frequency enclosure designed for sub-bass reinforcement to MLA208,made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy. The MLA118BASII is equipped with SA2.68II digital amplifier module based on MLA118B to be an active system to push 2pcs MLA208.
FEATURES
●High quality plywood with polyurea waterproof paint
●Direct radiating design
●Direct radiating design
●High temperature 4"(100mm) voice coil
SPECIFICATIONS
| MODE | MLA118B | MLA118BASII |
| LFREQUENCY RESPONSE(-3dB) | 35Hz-300Hz | 35Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1X18"(460mm)/4"voice coil LF | 1X18"(460mm)/4"voice coil LF |
| RATED POWER | 600W(RMS),2400W peak | 900W/4Ω+1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 790mmx725mmx595mm | 790mmx725mmx595mm |
| NET WEIGHT | 45 kg/pc | 47 kg/pc |
| GROSS WEIGHT | 50 kg/pc | 52 kg/pc |
