MLA115B/MLA115BAS
1x15" Sub-woofer /1x15"Active Sub-woofer
DESCRIPTION

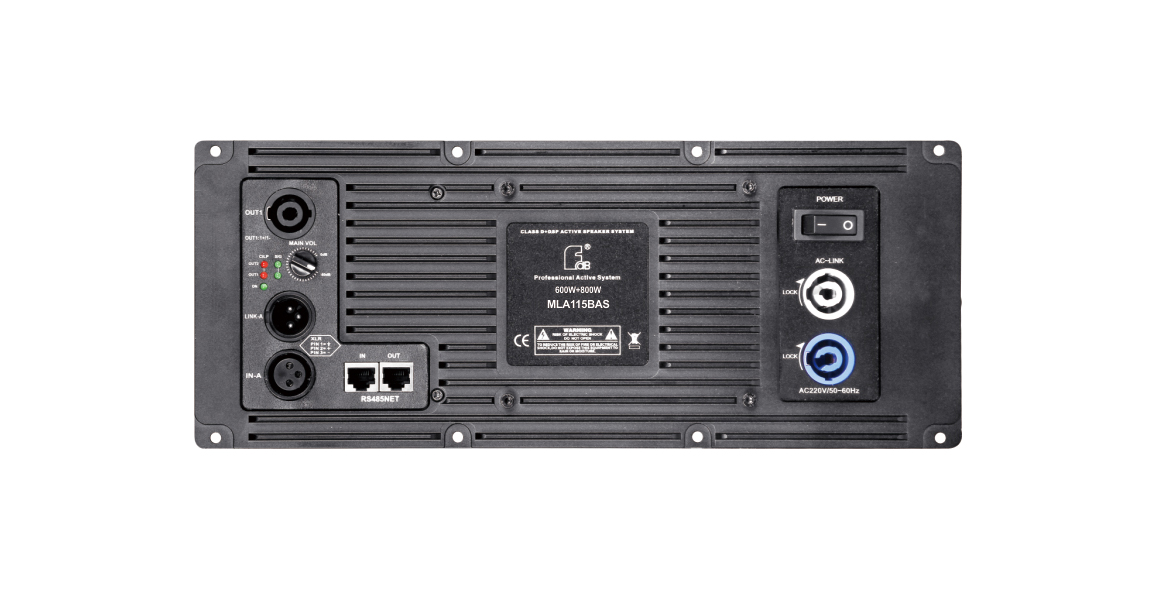

The MLA115B is a single 15" low frequency enclosure designed for sub-bass reinforcement to MLA206,made of high quality plywood with polyurea waterproof paint. All rigging parts are made of aluminium alloy. The MLA115BAS is equipped with SA2.68 digital amplifier module based on MLA115B to be an active system to push 4pcs MLA206.
FEATURES
●High quality plywood with polyurea waterproof paint
●Direct radiating design
●High temperature 4"(100mm) voice coil
●Direct radiating design
●High temperature 4"(100mm) voice coil
SPECIFICATIONS
| MODE | MLA115B | MLA115BAS |
| LFREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 35Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1x15"(385mm)/4"voice coil LF | 1x15"(385mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak | 900W/4Ω+1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 772mmx572mmx540mm | 772mmx572mmx540mm |
| NET WEIGHT | 35 kg/pc | 37 kg/pc |
| GROSS WEIGHT | 38 kg/pc | 40 kg/pc |
